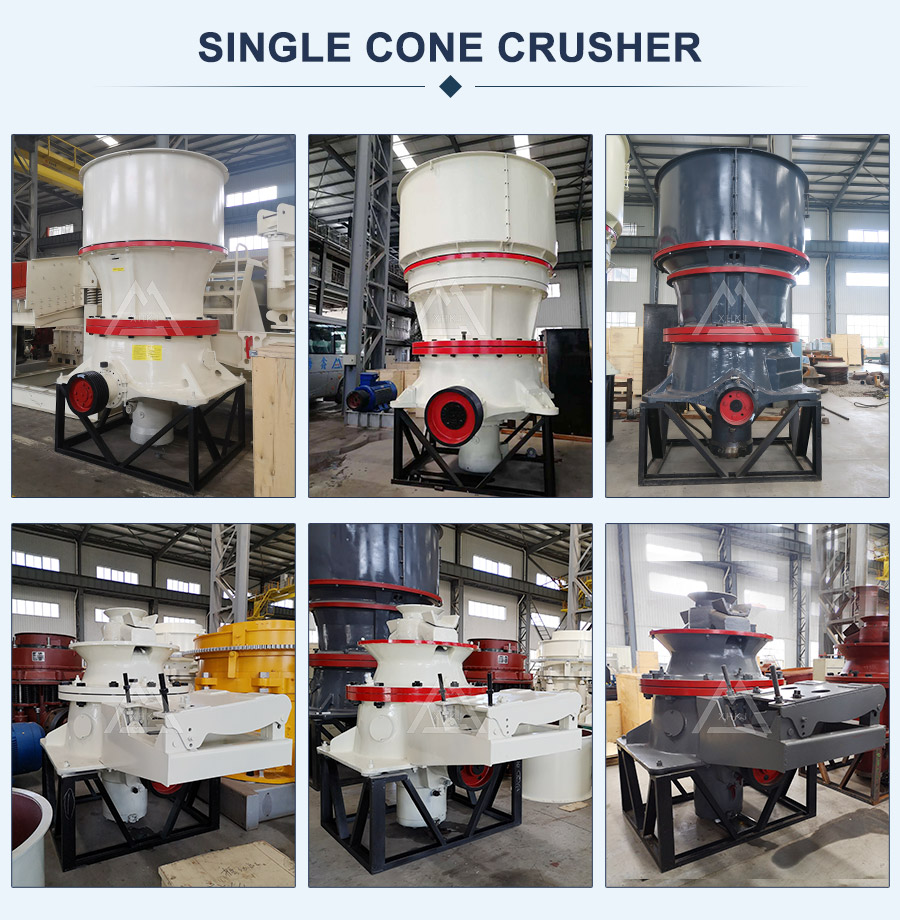

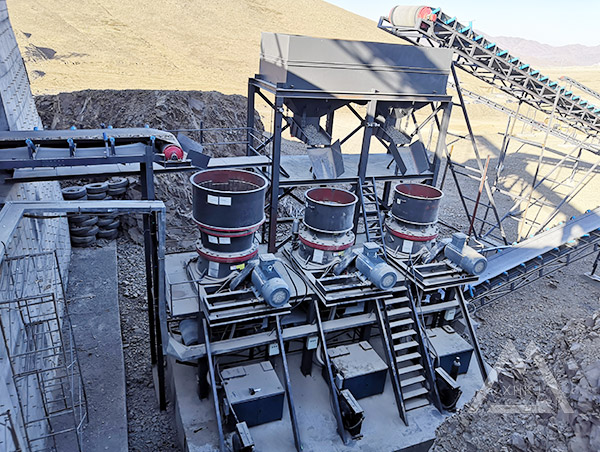

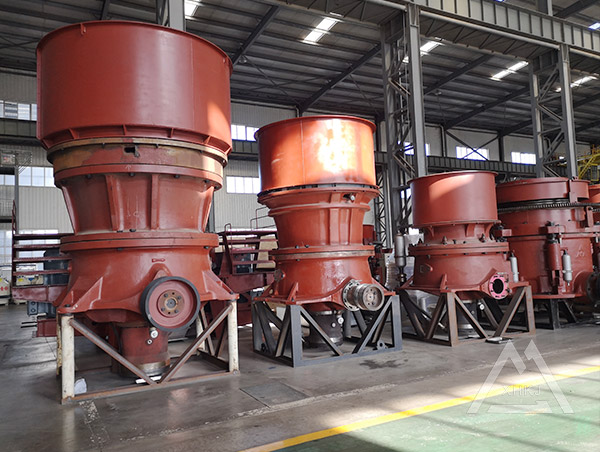

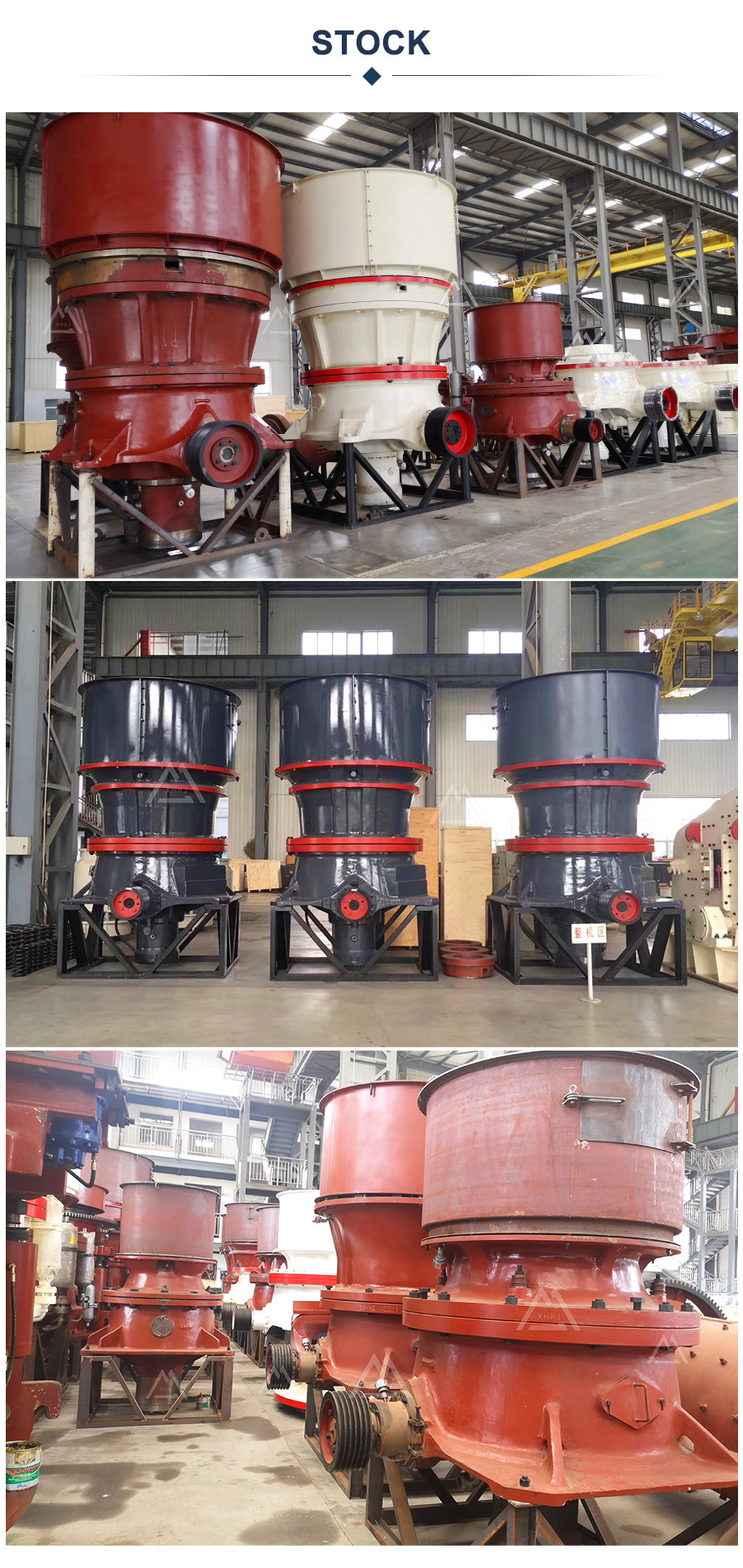

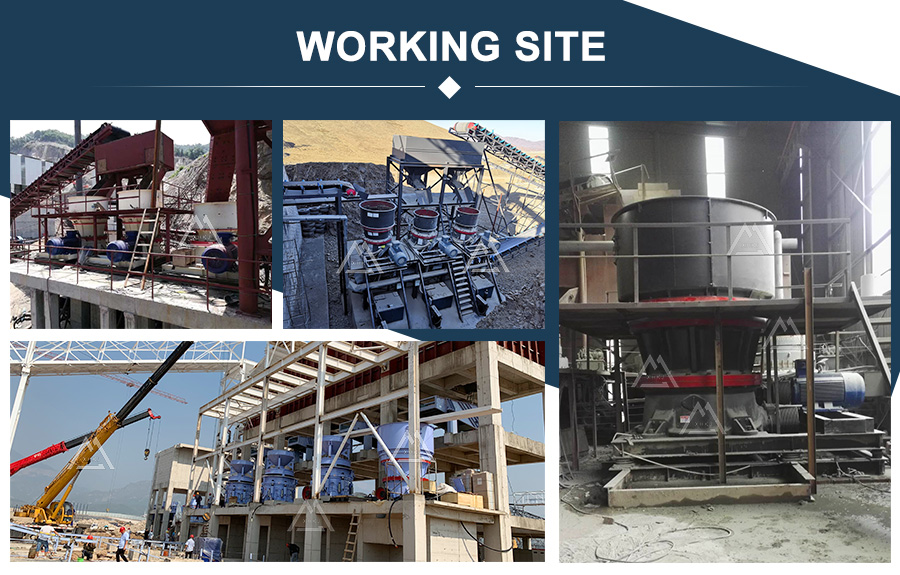

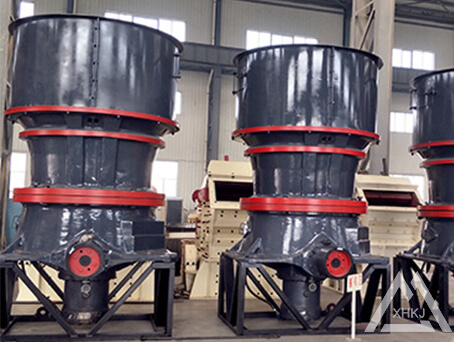

Single Cylinder Hydraulic Cone Crusher

Overview:    Single cylinder hydraulic cone crusher is widely used in mining, metallurgy, construction, highway, railroad, and water conservancy, etc. you can call us on Tel: 0086-371-67660555

Materials:    Iron ore, copper ore, slag, pebbles, quartz, granite, basalt, dolerite, etc.

0391-3373600Consulting

Single Cylinder Hydraulic Cone Crusher Working Principle

Single cylinder hydraulic cone crusher work, the rotation of the motor through the pulley or coupling, drive shaft and the cone of force in the eccentric sleeve moving around a fixed for rotary movement, so that the cone crusher in the crushing wall and near and sometimes leave is fixedly arranged on the regulating sleeve rolling white surface, the ore constantly under attack in the crushing cavity, extrusion and bending and crushing ore achieved. At unbreakable foreign body through the crushing chamber or for some reason silica sand single cylinder hydraulic cone crusher is overloaded, the spring system of insurance, the mouth of discharge increases, foreign bodies from the crushing chamber is discharged, such as blocking in row ore using cavity cleaning system, so that the discharging continues to increase, so that the foreign body removal of crushing cavity.

Single Cylinder Hydraulic Cone Crusher Features

Single cylinder hydraulic cone crusher features
1.Self-protection, the parts can not be damaged when hard materials such as the metals goes into the crushing cavity ;
2.Stable running performance and easy operation;
3.High quality wear-resistant parts reduce operating cost;
4.Long life and large application.;
5.A rib liner is provided inside the bottom section of the frame to help protect it from wear .
6.Hydraulic Cone Crusher is equipped with a hydraulic protecting system including protecting oilcan, locking oilcan and hydraulic driving oilcan, which deal with all kinds of problems during the operation without disassembling the machine.

Single Cylinder Hydraulic Cone Crusher Product Description

Single cylinder hydraulic cone crusher is widely used in mining, metallurgy, construction, highway, railroad, and water conservancy, etc. It can break or crush all kinds of medium hard or harder ore for mining, chemical building, materials and other industrial sectors. This kind of machine has the features of big crushing ratio, continuous operating, even granularity, automated hydraulic clearing system, high capacity, simple structure and low operating cost, suited perfectly for middle and fine crushing.


Single Cylinder Hydraulic Cone Crusher Specification

Single cylinder hydraulic cone crusher specification:

Model DP-100 DP-160 DP-250 DP-300
Motor power(kw) 75-90 110-160 132-250 200-315
Stroke(mm) 16、20、25 18、25、32、40 18、25、32、40 18、25、32、40
Weight (T) 9.8 12.8 23.2 38.5
Max feeding size(mm) Medium Coarse Extra coarse 200 250 250 330 280 380 380 500

Capacity of middle crushing



DP-100S CAPACITY (t/h)

Discharging

Stroke (mm)

20 25 30 35 40 45
16 80-90 105-115 120-130 135-145 145-165 155-175
20   120-130 145-155 160-180 170-200 185-215
25     185-195 200-220 210-230
DP-160S (t/h)

Discharging

Stroke(mm)

20 25 30 35 40 45 50
18   110-140 140-170 160-190 180-210 200-230 230-260
25     170-220 190-240 210-260 230-280
32       230-280 270-320 280-350
DP-250S (t/h)

Discharging

Stroke(mm)

20 25 30 35 40 45 50
18   170-190 170-210 190-230 210-255 235-275 255-295
25     220-270 255-315 290-345 320-350 330-350
32       360-400 380-420 400-420
40         450-500 480-530
DP-300S (t/h)

Discharging

Stroke(mm)

45 50 55 60 65 70 75 80
18 300-350 325-375 375-425 400-450 425-475 450-500 500-550 550-600
25   500-550 550-600 600-650 650-700 700-750 750-800
32   650-700 700-750 750-800 825-875 900-950 950-1000

► Capacity of fine crushing



DP-100 CAPACITY (t/h)

Discharging

Stroke(mm)

7 10 13 16 19 22 25
16 35-45 45-55 55-65 65-75 75-85 80-90 85-95
20 45-50 50-60 60-70 70-85 90-100 100-110
25   55-65 65-75 75-90 100-115
DP-160 CAPACITY (t/h)

Discharging

Stroke(mm)

8 10 15 20 25 30 33
18 60-70 70-90 80-105 100-125 135-150 160-175 170-185
25   90-110 110-130 130-155 160-180 185-210
32     140-160 170-190 190-200
40       200-220 200-240
DP-250 CAPACITY (t/h)

Discharging

Stroke(mm)

8 12 16 20 24 28 32 36 40
25 100-120 120-140 140-160 160-180 180-200 200-220 220-245 245-265 265-290
32 100-130 130-160 170-200 195-225 200-250 250-280 275-305 305-335
40   160-190 215-245 245-275 280-310 315-345 335-365
DP-300 (t/h)

Discharging

Stroke(mm)

8 12 16 20 24 30 35 40 45
25 150-170 165-185 190-210 230-250 250-270 280-300 320-340 340-370 370-390
32   200-220 230-250 270-290 300-330 370-390 420-430 470-490
40   230-250 260-280 320-350 375-405 420-450 470-500
