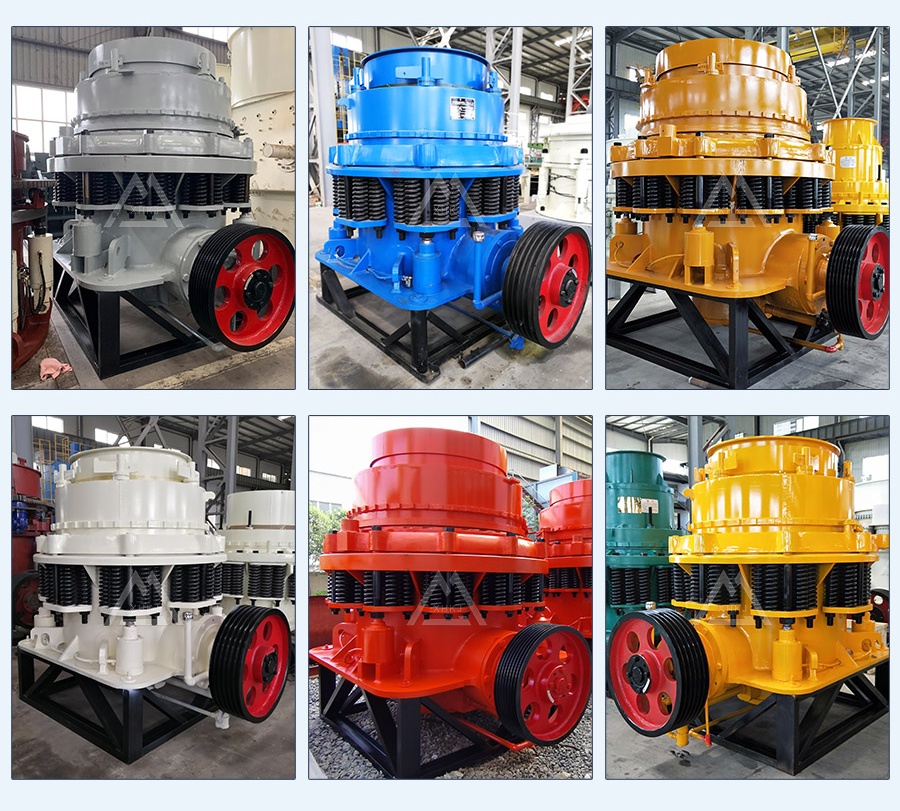

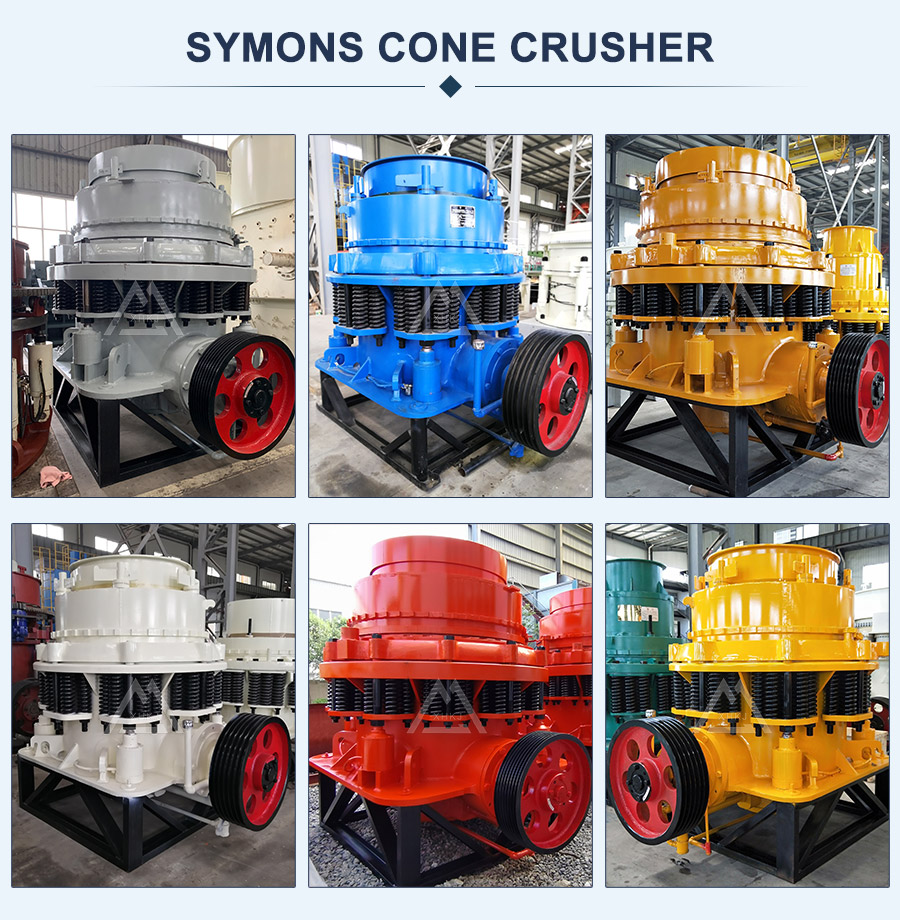

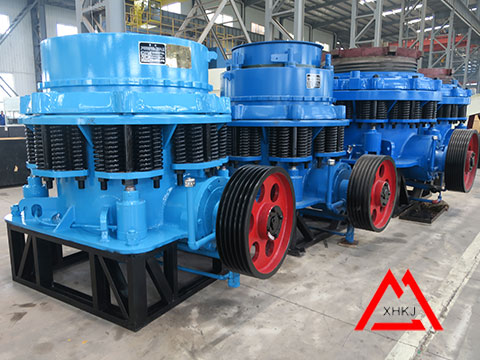

Symons Cone Crusher

Overview:    Symons Cone Crusher developed by the expert has been experienced the optimized improvement so that Symons Cone Crusher features perfect reasonable structure, more advanced technology and excellent performing in the manufacturing, installation and maintenance.

Materials:    Iron ore, copper ore, slag, pebbles, quartz, granite, basalt, dolerite, etc.

0371-67660555Consulting

Symons Cone Crusher Working Principle

Symons cone crusher mainly consists of frame part, transmission part eccentric Ministry, the Ministry of bowl bearings, bearing sleeve Ministry Ministry of adjustment sleeve, the spring part and provide lubricant lubrication oil station and other components.
Symons cone crusher reasonable structural design, high production efficiency.
Using the design of high precision bowl bearing reserves and centralized lubrication systems and novel stem oil seals dust control system. When you need to adjust the discharge opening size can be adjusted by hand to promote the winch. The machine also has a thing when it is not broken into the crushing chamber, spring safety devices to protect equipment from damage characteristics.
When cone crusher work, motor drives the eccentric through the pulley, drive shaft and a rotating set of gears, crushing cone axis moving in force under the spin pendulum movement to do so crushing wall of rolling acetabular wall sometimes close, sometimes far away, ore crushing cavity constantly being squeezed and bent and broken.



Symons Cone Crusher Features

Symons cone crusher features :
1. Cubic-shaped end products;
2. Adjustable end products sizes, simple crushing process;
3. The board hammer is made of high chrome, abrasion-resistant, and with powerful impacting force;
4. Non-key connected, easy to maintain, cost-saving;
5. Sound construction and high efficiency.

Symons Cone Crusher Product Description

Symons cone crusher is widely used in the metallurgical industry, construction materials industry, road building industry, chemical industry and silicate industry. It is suitable to crush ores and rocks with medium hardness and medium hardness above. It has features of strong crushing force, reliable structure, high efficiency, high capacity, low operating cost, easy adjustment, economical to use and so on. Also symons cone crusher uses the compensating lubricating grease sealing, it can avoid lubrication oil being polluted by dust, so that all parts work reliably and have a long operating life. The safety insurance system of cone crusher uses several spring sets, so the matter and iron ore are down from the crushing cavity and do not damage the crusher, simply and reliably. The cone crusher has standard type and short head type, the standard type is suitable to medium size and the short head type for medium and fine crushing.





Symons Cone Crusher Specification



Symons cone crusher technology specfications:

Type Model Cavity Type Diameter of cone (mm) Adjusting Range of Discharge
Opening (mm)
Recommend feeding size when the minimum output size (mm) Max feed
size (mm)
Capacity (t/h) Main
Motor
Power (kw)
Weight (kg) Overall
Dimension
(L×W×H) (mm)
2’FT PSGB- 0607 Standard fine 600 6-38 70 60 16-50 22 4500 2195×1158×1651
PSGB- 0609 Standard medium 10-38 95 80 18-65
PSGB- 0611 Standard coarse 13-38 110 90 22-70
PSGD- 0603 Short head fine 3-13 35 30 9-35
PSGD- 0605 Short head coarse 5-16 50 40 22-70
3’FT PSGB- 0910 Standard fine 900 9-22 102 85 45-91 75 9980 2656×1636×2241
PSGB- 0917 Standard coarse 13-38 175 150 59-163
PSGB- 0918  Standard super coarse 25-38 178 150 118-163
PSGD-0904 Short head fine 3-13 41 35 27-90 10530
PSGD-0906  Short head medium 3-16 76 65 27-100
PSGD-0907 Short head coarse 6-19 102 85 59-129
4.25’FT PSGB- 1313 Standard fine 1295 13-31 137 115 109-181 160 22460 2983×1866×3156
PSGB- 1321 Standard medium 16-38 210 178 132-253
PSGB- 1324 Standard coarse 19-51 241 205 172-349
PSGB- 1325 Standard super coarse 25-51 259 220 236-358
PSGD-1306 Short head fine 3-16 64 54 36-163 22590
PSGD-1308 Short head medium 6-16 89 76 82-163
PSGD-1310 Short head coarse 8-25 105 89 109-227
PSGD-1313 Short head super coarse 16-25 133 113 209-236
5.5’FT PSGB- 1620 Standard fine 1676 16-38 209 178 181-327 220 43270 3941×2954×3771
PSGB- 1624 Standard medium 22-51 241 205 258-417
PSGB- 1626 Standard coarse 25-64 269 228 299-635
PSGB- 1636 Standard super coarse 38-64 368 313 431-630
PSGD-1607 Short head fine 5-13 70 60 90-209 43870
PSGD-1608 Short head medium 6-19 89 76 136-281
PSGD-1613 short head coarse 10-25 133 113 190-336
PSGD-1614 Short head super coarse 13-25 133 113 253-336
7’FT PSGB- 2127 Standard fine 2134 19-38 278 236 544-1034 400 86730 4613×3302×4638
PSGB- 2133 Standard medium 25-51 334 284 862-1424
PSGB- 2136 Standard coarse 31-64 369 314 1125-1814
PSGB- 2146 Standard super coarse 38-64 460 391 1252-1941
PSGD-2110 Short head fine 5-16 105 89 218-463 89500
PSGD-2113 Short head medium 10-19 133 113 404-580
PSGD-2117 Short head coarse 13-25 178 151 517-680
PSGD-2120 Short head super coarse 16-25 203 172 580-744
