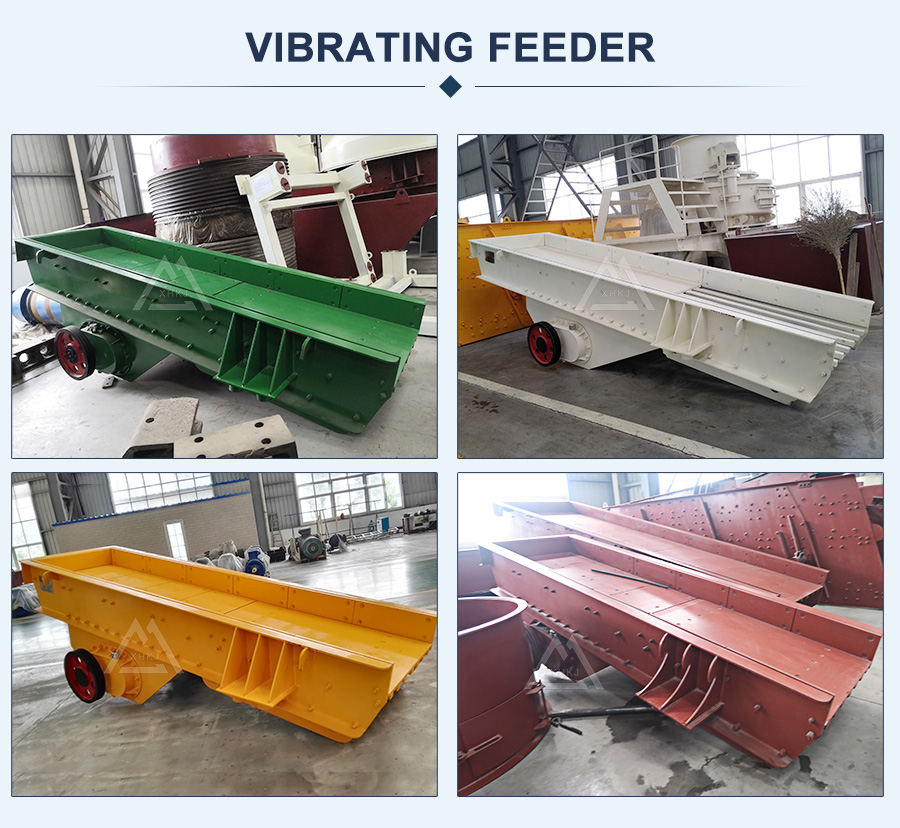

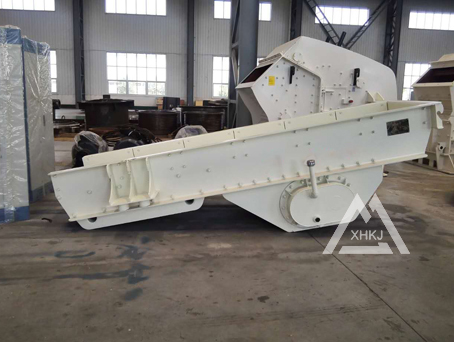

ZSW Series Vibrating Feeder

Overview:    ZWS Series Vibrating Feeder is mainly used to feed material into the primary crusher homogeneously and continuously. Meanwhile, it can screen the fine material and make the crusher more powerful.

Materials:    Iron ore, copper ore, slag, pebbles, quartz, granite, basalt, dolerite, etc.

0391-3373600Consulting

ZSW Series Vibrating Feeder Working Principle

 The sand making mining vibrating grizzly feeder is mainly used to feed material into primary crusher evenly and continuously. Meanwhile, it can screen material and strengthen the capacity of the crusher.It adopts double eccentric shaft vibration exciter structural characteristics to ensure that equipment can withstand the impact of falling bulk materials and increase feeding capacity.In the production process it can be massive and granular to sent materials from storage silos in uniform, regular and continuously way to the affected device,thus preventing the affected device due to uneven feed produced crash phenomenon,which extended equipment life.

ZSW Series Vibrating Feeder Features

1.Smooth vibration

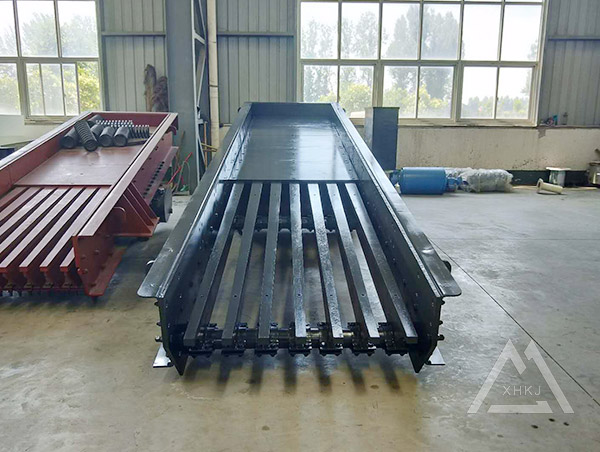

2.Special bar to prevent the block of raw material
3.The distance between bars is adjustable
4.Stepless speed-regulated motor which could be additionally mounted so as to control the feeding capacity without frequent start-up of motor.
5.Stable performance &Reliable operation.
6.Easy to adjust &Easy to maintain
7.Long span life &No pollution with closed body
8.Good performance-conditioning, it can be used in any severe environments.

ZSW Series Vibrating Feeder Product Description

ZWS Series Vibrating Feeder is mainly used to feed material into the primary crusher homogeneously and continuously. Meanwhile, it can screen the fine material and make the crusher more powerful.









ZSW Series Vibrating Feeder Specification


Model Max Feed Size(mm) Capacity (t/h) Motor Power (L*W*H) (kw) Overall Dimensions (mm) Weight (kg) Size of Funnel(mm)
ZSW-380*95 500 96-160 11 3882*2224* 2121 4082 3800*950
ZSW-490*95 500 120-240 15 4957*2277* 2150 5004 4900*950
ZSW-490*110 580 120-280 15 4957*2400* 2150 5320 4900*1100
ZSW-590*110 600 200-350 22 6000*2500* 2150 6130 5900*1100
ZSW-600*130 750 400-560 22 6082*2580* 2083 7800 6000*1300
ZSW-600*150 1000 800 30 6627*2350* 3068 12110 6000*1500
ZSW-600*200 1000 1200 37 6436*3853* 3014 18650 6000*2000
