gyratory crusher

Input Size:1065mm-1525mm

Capacity:375-1200kw

Type:Secondary Crushing

Processed Materials:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc. (for Hard Stone).

Applications:Aggregates Shaping, Mechanism sand, Bituminous Concrete,Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water Conservancy

Whatsapp/Wechat:+86-13676922906

Email:sales@zxcrusher.com

SNS Site Links:
  • whatsapp
  • skype
  • facebook
  • youtube
  • linkedin
  • twiter
  • blogspot

Product Description

 PXH series gyratory crusher mechanical, hydraulic, electrical, automation and intelligent control technology, and to mark gyratory crusher,and Compared with the traditional gyratory crusher, it has  low use cost, and convenient maintenance and adjustment, which can provide users with more efficient and intelligent capacity coarse crushing solutions.

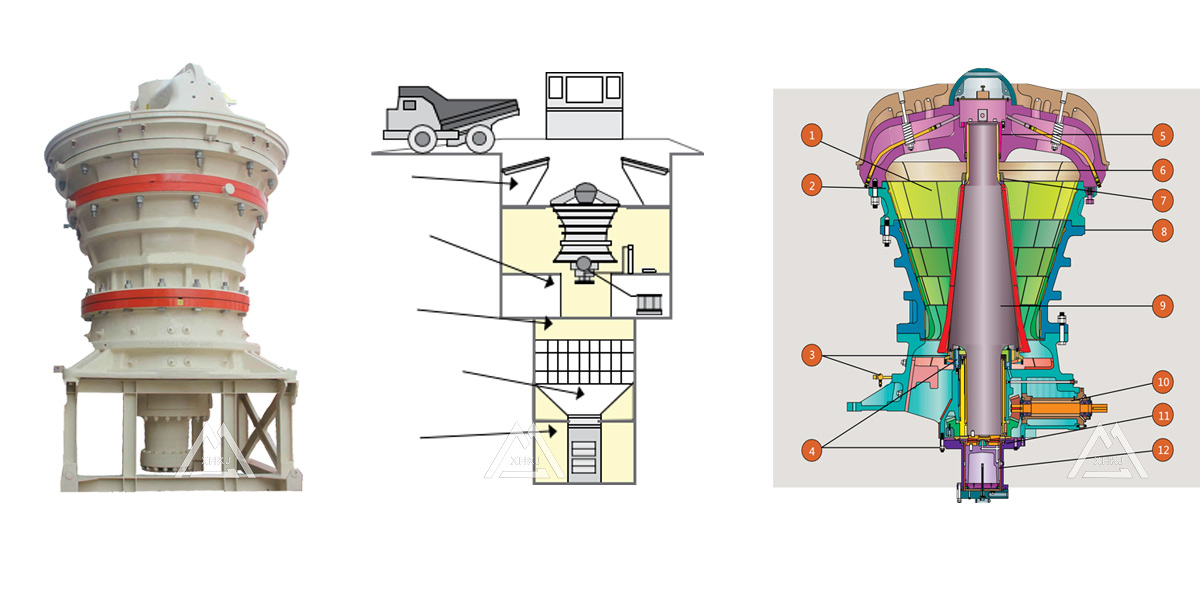

Working Principle

Gyratory crusher is mainly that the cross section of the upper portion of the lower frame, moving cone portion, the eccentric portion, the drive portion and the cylinder portion, etc., rotated by a motor driven horizontal shaft, a horizontal shaft driven by the eccentric rotation of the gear, and then driven by the eccentric portion in a circular cone movable pivot so as to achieve a continuous extrusion crushed stones.
By adjusting the hydraulic cylinder at the bottom of the moving cone, the moving cone can be moved up and down to conveniently adjust the size of the discharge port and the size of the product particle size. At the same time, the hydraulic cylinder also provides iron protection function. When an unbreakable object (such as iron block) enters the crushing chamber, the hydraulic cylinder can automatically make the moving cone fall, thereby releasing the iron block and continuing to crush.

Features


1.The crushing chamber can be adapted to various crushing application conditions, with the better crushing performance.
2.Manganese steel wear parts are standard parts, chrome alloy fixed cone lining and lower frame lining are optional parts.
3.The effective dustproof seal is equipped with a positive pressure blower to prevent dust from entering the eccentric device and the driving device and extend the life of the crusher bearing.
4.Balanced design is an design for mobile or fixed crushing operations, which reduce the impact force transmitted to the crusher's support frame.
5.The beam bushings and seals can be easily replaced without removing the beam, which reduces manpower, time, equipment consumption and production losses caused by parking.
6.The heavy-duty integrated spindle is equipped with a patented alloy steel threaded spindle sleeve to reduce the stress of the spindle.
7. moving cone lock nut with cutting ring makes the removal of the moving cone liner easier.
8.High-strength frame design, even under the severe crushing conditions, can work without failure and prolong service life.
9.The main shaft and the moving cone are cast into one body to avoid the loosening of the moving cone during the crushing process.
10.External adjustment device for large gear and small gear backlash.
11.Patent thrust bearing wear indicator releasably harmless silver in the lubricating oil reaches the worn thickness
12.The spindle position control system can easily adjust the spindle to compensate for the wear of the liner and control the product size


Specification

Model Feeding size
mm(in)
Pinion
RPM
Power
kW(HP)
125mm
(5.0’’)
140mm
(5.5")
150mm
(6.0’’)
165mm
(6.5’’)
175mm
(7.0’’)
190mm
(7.5’’)
200mm
(8.0’’)
215mm
(8.5’’)
230mm
(9.0’’)
240mm
(9.5’’)
250mm
(10.0’’)

42-65

1065
(42)

600

375
(500)


2010
(2220)

2335
(2575)

2515
(2775)

2870
(3165)







50-65

1270
(50)

600

375
(500)



2395
(2645)

2780
(3065)

2935
(3240)







54-75

1370
(54)

600

450
(600)



2885
(3185)

2985
(3295)

3145
(3470)

3335
(3680)

3485
(3845)





62-75

1575
(62)

600

450
(600)



2890
(3190)

3615
(3985)

3815
(4210)

4205
(4640)

4330
(4775)





60-89

1525
(60)

600

600
(800)




4195
(4625)

4540
(5005)

5080
(5600)

5295
(5840)

5530
(6100)

5805
(6400)



60-110E

1525
(60)

600

1200
(1600)





5535
(6100)

6945
(7655)

7335
(8085)

7570
(8345)

8280
(9130)

8595
(9475)

8890
(9800)



The above processing capacity is based on the following assumptions: 100% of the feed material passes through 80% of the width of the feed port; 80% passes through 60% of the width of the feed port, and 50% passes through a sieve with a size of 10% of the maximum feed block size. These capacity values apply to materials with a bulk density of 1.6 t / m3 (100 lb / in3).

All capability values are calculated at the maximum eccentricity of each device. All capabilities depend on different applications. Factors to consider when determining the total crushing capacity include: material characteristics, feed particle size, material distribution, work index, water content, and feed method. Please consult Jiaozuo Zhongxin Heavy Industrial Machinery Co., Ltd. to determine your processing capacity requirements.


Model   Weight Beam assembly Upper frame assembly Main shaft assembly Lower frame assembly Spindle position control assembly Eccentric assembly

42-65

kg pounds

119,750
264,000

20,500
45,200

80,100
36,330

23,130
51,000

29,570
65,200

4,040
8,900

3,080
6,800

50-65

kg pounds

153,300
338,000

30,840
68,000

54,880
121,000

28,120
62,000

29,570
65,200

4,040
8,900

3,080
6,800

54-75

kg pounds

242,220
534,000

38,100
84,000

85,050
187,500

38,560
85,000

62,140
137,000

5,400
11,900

5,720
12,600

62-75

kg pounds

298,460
658,000

69,850
154,000

109,320
241,000

42,180
93,000

62,240
137,200

5,400
11,900

5,720
12,600

60-89

kg pounds

398,250
878,000

65,320
144,000

154,680
341,000

66,220
146,000

82,780
182,500

10,430
23,000

8,940
19,700

60-110E

kg pounds

553,383
1,220,000

103,964
229,200

169,010
372,600

103,874
229,000

114,986
253,500

21,275
46,900

17,900
39,460
