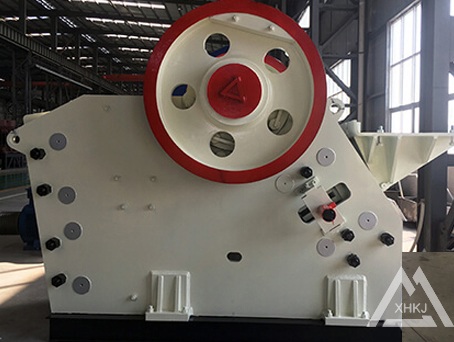

PEV series European Type Jaw Crusher
Overview： Jaw Crusher is ideally suitable for primary and secondary crusher for material with compression strength less than 320MPA. Jaw Crusher is of high crushing ratio, larger capacity, well-distributed final product size, simple structure, reliable performance.Tel: 0086-371-67660555
Materials： Iron ore, copper ore, slag, pebbles, quartz, granite, basalt, dolerite, etc.
PEV series European Type Jaw Crusher Product Description
Jaw Crusher is ideally suitable for primary and secondary crusher for material with compression strength less than 320MPA. Jaw Crusher is of high crushing ratio, larger capacity, well-distributed final product size, simple structure, reliable performance, convenient maintenance, lower operation cost, etc. It is widely used in mining, metallurgy, construction, highway, railroad, and water conservancy, etc.
PEV series European Type Jaw Crusher Working Principle
The jaw crusher adopts the electric motor as the power. The eccentric shaft is revolved by an electric motor through v-belts. It causes the swing jaw following the preconcerted path to crush the feeding material. Thus the material will be crushed in the crushing chamber which is composed of the stationary jaw plate, swing jaw plate and the liner plate. The material is discharged from the lower part of machine that is what you want.
PEV series European Type Jaw Crusher Features
1.Deep cavity which prompts the feeding capacity and output.
2.Large reduction ration and even production size.
3.Convenient and reliable adjustment device of the spacer style discharging mouth.
4.Big adjustment range of the outlet which can satisfy the requirement of different customers.
5.Energy conservation: every single machine can save energy by 15%-30% which is more than twice of general single machine.
PEV series European Type Jaw Crusher Specification
| Model | PEV500*750 | PEV600*900 | PEV750*1060 | PEV950*1250 | PEV1200*1600 |
PEV 1500*2100 |
|
| Feeding opening width（mm） | 750 | 900 | 1060 | 1250 | 1600 | 2100 | |
| Feeding opening height（mm） | 500 | 600 | 750 | 950 | 1200 | 1500 | |
| Motor power(kw) | 55-75 | 90 | 132 | 160 | 250 | 400 | |
| Weight(KG) | 8000 | 11000 | 22000 | 38000 | 72000 | 125000 | |
| Overall dimension （L×W×H）(mm) |
2450*1845*1700 | 3100*1900*1900 | 3150*2455*2200 | 4060*2775*2875 | 4280*2980*3050 |
4550*3260 *3345 |
|
| Product size(mm) | closed discharge （mm） | Capacity(t/h) | |||||
| 0-60 | 40 | 55-80 | |||||
| 0-75 | 50 | 70-90 | |||||
| 0-90 | 60 | 80-110 | 120-155 | ||||
| 0-105 | 70 | 105-130 | 140-180 | 155-200 | |||
| 0-120 | 80 | 120-150 | 160-210 | 175-230 | |||
| 0-135 | 90 | 130-170 | 180-235 | 200-260 | |||
| 0-150 | 100 | 150-190 | 200-260 | 220-290 | 290-380 | ||
| 0-185 | 125 | 190-260 | 250-325 | 280-365 | 350-455 | ||
| 0-225 | 150 | 250-340 | 300-390 | 335-435 | 410-535 | 520-675 | |
| 0-260 | 175 | 350-455 | 390-510 | 470-610 | 595-775 | 760-990 | |
| 0-300 | 200 | 445-580 | 530-690 | 675-880 | 855-1110 | ||
| 0-340 | 225 | 590-770 | 750-975 | 945-1230 | |||
| 0-375 | 250 | 650-845 | 825-1070 | 1040-1350 | |||
| 0-410 | 275 | 900-1170 | 1130-1470 | ||||
| 0-450 | 300 | 980-1275 | 1225-1590 | ||||
