  • PC Series Mobile Cone Crusher Plants

PC Series Mobile Cone Crusher Plants

Overview:    Mobile Cone Crusher is another kind of mobile crushing unit, mainly to satisfy different requirement of final products. Cone crusher replaces impact crusher to produce much harder and fine stone or sand products.You can call us on Tel: 0086-371-67660555

Materials:    Iron ore, copper ore, slag, pebbles, quartz, granite, basalt, dolerite, etc.

0371-67660555Consulting

PC Series Mobile Cone Crusher Plants Working Principle

 Cone Crusher Mobile Crushing Plant is mainly used in metallurgy, chemical industry, building materials, water and electricity, and so often need to move operations materials processing, especially for the highway, railway, water and electricity engineering liquidity stone of homework, really for customers to create more new business opportunities and reduce the production cost.

PC Series Mobile Cone Crusher Plants Features

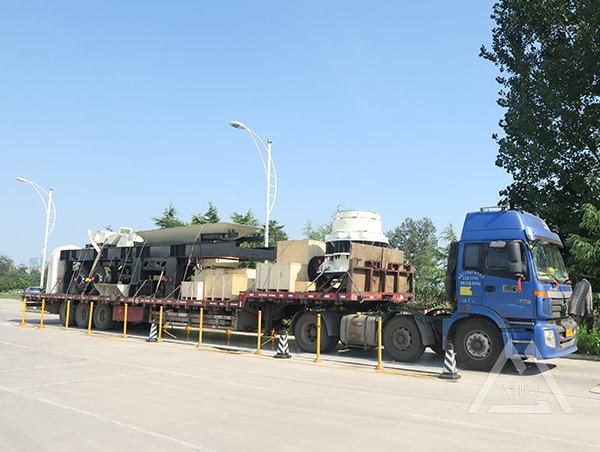

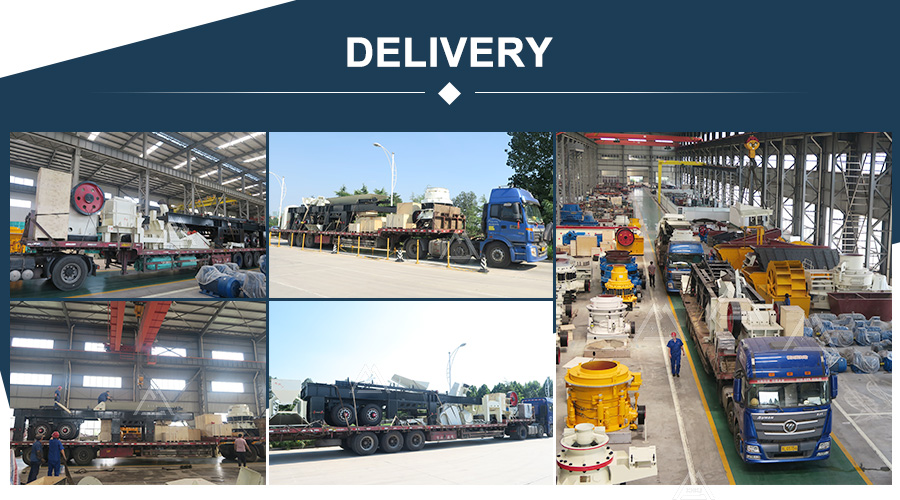

1.Compact structure and dismountable parts are good for transportation, cutting the transportation expenses.
2. Equipped with supporting-metal, the machine can quickly start to work without any foundation.
3.The vibrating feeder can finish the pre-screening work, which can increase the crushing capacity and cut the production cost.
4.One metal-frame design fits for many mainframe crusher, we can prepare many inversion and fresh-investors can get machines quickly. Also reinvestment won’t take too much cost to update the crushing plant.
5.Equipped with sustained hoisting tools, operating platform, repair kit, and centralized control system, etc., to humanize maintenance and applications
6.A water-jet dust suppression device and other relevant devices are added as options to satisfy users’ various requirements.

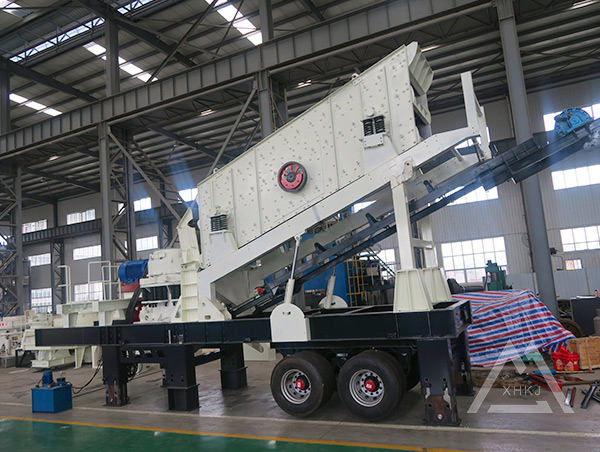

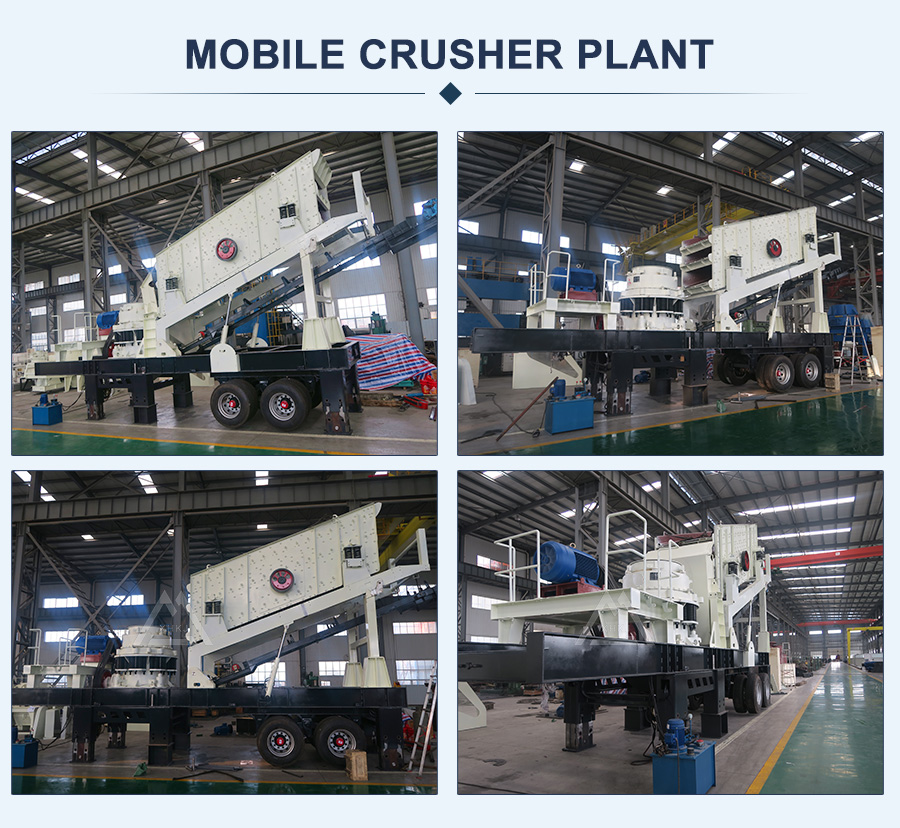

PC Series Mobile Cone Crusher Plants Product Description

Mobile Cone Crusher is another kind of mobile crushing unit, mainly to satisfy different requirement of final products. Cone crusher replaces impact crusher to produce much harder and fine stone or sand products.Mobile crusher station is a new type of equipment developed on the basis of years of independent research and development and manufacturing experience of wheel mobile crushing plant, and in combination with the new user demands. It is optimized and innovated in the aspects of structural design, equipment configuration and combined application, so as to realize more flexible combinations, greatly widen the application fields of wheel mobile crushing plant, and truly realize the approaching treatment of materials.

PC Series Mobile Cone Crusher Plants Specification


PC Series Cone Plants
PC CONE PLANTS PC09PS3S PC13PS3S PC20HP3S PC30HP3S
Transport dimensions
Length(mm) 12880 13920 15100 15500
Width(mm) 2800 2800 2780 2780
Height(mm) 4290 4300 4360 4365
Weight(t) 30 37.3 35 43
Axle weight(t) 20.3 26 22 26.5
Traction pin/Loading weight(t) 90/10.1 50/11.5 90/10.1 50/11.5
Cone crusher
Model 3'FT 4.25'FT XHP200 XHP300
Max Feeding size(mm) 35-150 54-220 10-185 20-230
Setting range(c.s.s)(mm) 3-38 3-51 5-19 6-25
Vibrating screen
Model 3YK1548 3YK1860 3YK1860 3YK2160
Belt conveyor
Model B800X7.4Y B1000X8.2Y B800X7.4Y B1000X8.2Y
Number of axles
Number of axles 2 2 2 3
