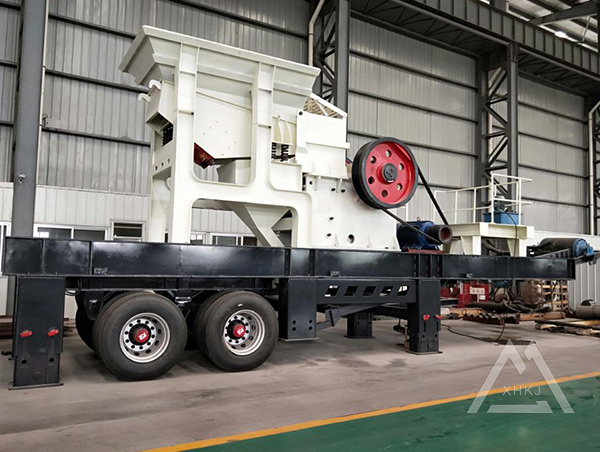

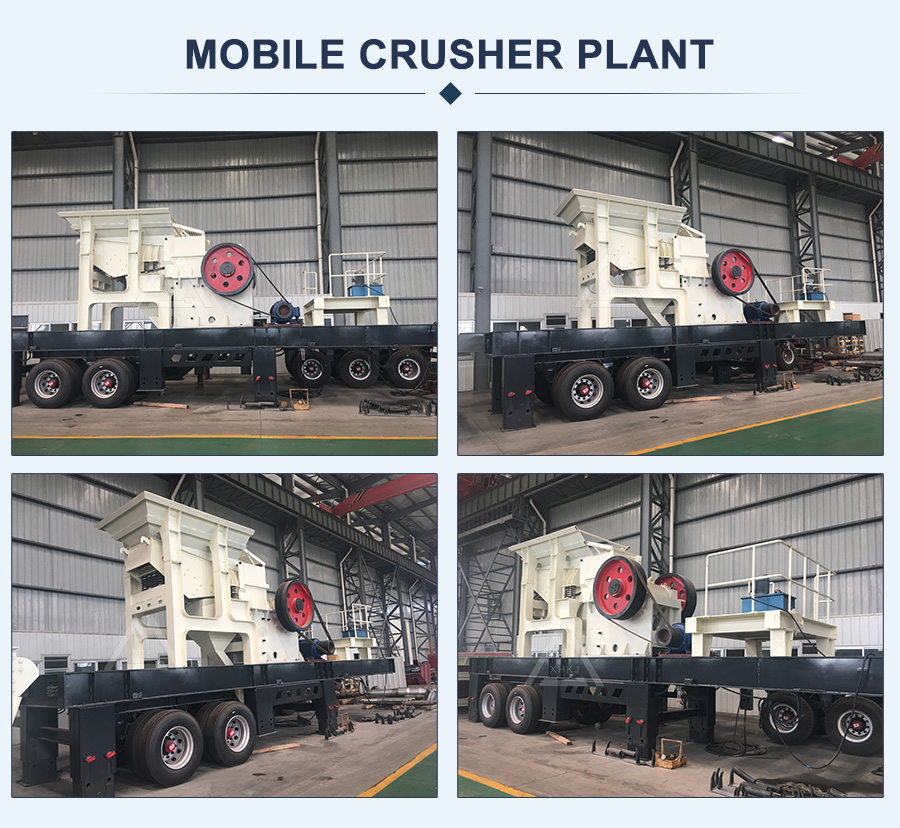

PC Series Mobile Jaw Crusher Plants

Overview:    The jaw crusher plant is applied to multistage crush large materials, and then screen the discharges according to their different specifications. The whole set plants is widely used to mine, building material, highway, rail way and hydropower industries, etc., finish crushing and screening operations at one time, produce required size and output for consumers. You can call us on Tel: 0086-371-67660555

Materials:    Iron ore, copper ore, slag, pebbles, quartz, granite, basalt, dolerite, etc.

0391-3373600Consulting

PC Series Mobile Jaw Crusher Plants Working Principle

Jaw Crusher ,Vibrating Feeder and vibraing screen compose the unit of Mobile Crusher Station, and at the same time along with highly efficient vibrating feeder. Vibriating feeder can reduce the load capacity of Jaw Crusher, and also increase the total production. Jaw Crusher is widely used in many ways, and Mobile Crusher are mainly used in primary crushing on mountain extraction. The capacity range of Mobile Jaw Crusher is 50-500t/h.

PC Series Mobile Jaw Crusher Plants Features

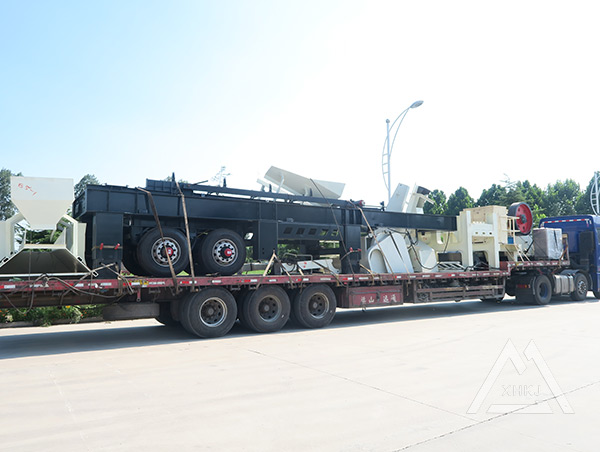

1. It adopts ship form steel structure and low vehicle chassis with light weight. The volume is controlled reasonably. Hidden style traction frame is easy to be packed up and put up. The transportation turning radius is very small.
2. Feeding guard is lifted by hydraulic pressure, easy to be loaded and unloaded, conveniently and reliably to be fixed.
3. Feeding guard adopts hierarchical type with two layers structure which provides prerequisites for widening.

PC Series Mobile Jaw Crusher Plants Product Description

PC series coarse crushing plant is considered as the most powerful crushing plants in China. It owns awesome big mouth, strong and giant jaws can easily crush all the materials in different hardness. It is indeed the sharpest crushing blade with excellent crushing ratio.

PC Series Mobile Jaw Crusher Plants Specification



PC Series Jaw Plants
PC JAW PLANTS PC600 PC750 PC900 PC1060 PC1200
Transport dimensions
Length(mm) 8700 9326 10700 12500 14450
Width(mm) 2360 2490 2780 2900 3000
Height(mm) 3765 4125 3840 4450 4800
Weight(t) 17.4 27 35.4 60 82
Axle weight(t) 8.1 16 25 40.5 52
Traction pin/Loading weight(t) 50/9.3 50/11 50/10.4 90/19.5 90/30
Jaw crusher
Model PE400X600 PE500X750 PE600X900 PE750X1060 PE900X1200
Feed opening(mm) 400X600 500X750 600X900 750X1060 900X1200
Max Feeding size(mm) 340 425 500 630 780
Setting range(c.s.s)(mm) 40-100 50-100 65-180 80-180 95-225
Capacity(t/h) 16-60 40-110 80-180 110-320 220-450
Feeder
Model GZT0724 GZT0724 ZSW380X95 ZSW490X110 ZSW600X1300
Hopper volume(m³) 3.2 3.2 7.6 10 10
Hopper width(mm) 2200 2200 3150 3000 3000
Belt conveyor
Model B600X5.8Y B650X5.8Y B1000X7.0Y B1000X7.2Y B1200X8.3Y
Side Belt conveyor(optional)
Model / B400X2.7Y B500X2.7Y B500X2.7Y B650X3.5Y
Magnetic separator(optional)
Model RCYD-6.5 RCYD-6.5 RCYD-10 RCYD-10 RCYD-12
Number of axles
Number of axles 1 2 2 3 4
