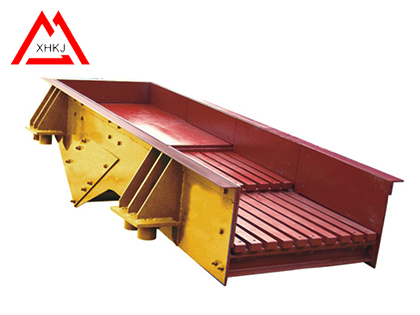

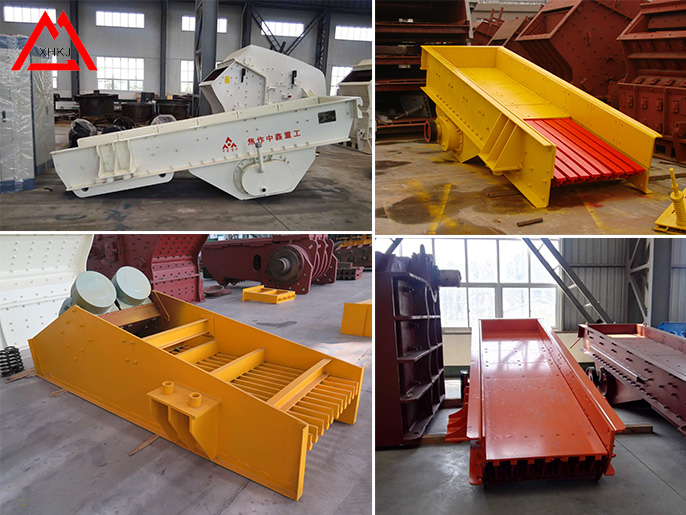

GZT Series Vibrating Feeder
Overview： It is used to feed material into the primary crusher homogeneously, meanwhile because of the bar-shaped screen, it can screen away soil contained in the raw material, increase the capacity of the primary crushing.
Materials： Iron ore, copper ore, slag, pebbles, quartz, granite, basalt, dolerite, etc.
0391-3373600ConsultingThe vibrating feeder utilizes electromagnetic vibrating device to drive minerals to reciprocate in the direction of dip. When the vertical component of accelerated speed of feeder exceeds accelerated speed, minerals are tossed upward and leap forward in parabolic fashion. It takes 1/5 second to finish the rising and falling. The chute vibrates for one time and subsequently the minerals are tossed for one time. The chute vibrate at a frequency 3000/minute. Correspondingly, minerals are tossed upward and leap forward. So minerals can continuously and uniformly move forward and feeding is achieved.
1.Smooth vibration

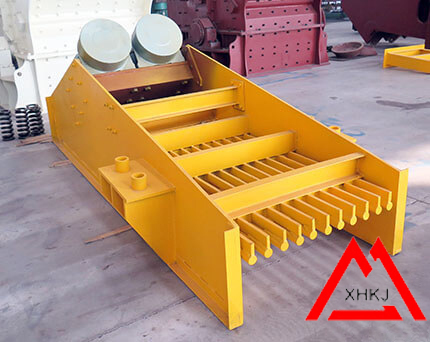

2.Special bar to prevent the block of raw material
3.The distance between bars is adjustable
4.Stepless speed-regulated motor which could be additionally mounted so as to control the feeding capacity without frequent start-up of motor.
5.Simple structure, even feeding, good continues performance
6. Large capacity and high efficiency, low noise and power consumption.
7. Stable and smooth vibrating, long working life.
8.Vibrating force adjustable, easy to operation and maintenance.
GTZ Series Vibrating Feeder adopts the vibrating motor to produce vibration force. It is used to feed material into the primary crusher homogeneously, meanwhile because of the bar-shaped screen, it can screen away soil contained in the raw material, increase the capacity of the primary crushing. It is suitable for feeding material into the primary crusher in hydropower field, building material and mining.
Technical Parameters
► Technical Data:
| Model | Max Feed Size(mm) | Capacity (t/h) | Motor Power (kw) | Installation Slope(°) | Double Amplitude (mm) | Overall Dimensions(mm) | Weight (kg) |
| GZT-0724 | 450 | 30-80 | 2*1.5 | 10 | 4-6 | 2481*1130*990 | 2422 |
| GZT-0932 | 560 | 80-150 | 2*2.4 | 10 | 4-8 | 3298*1512*1195 | 3203 |
| GZT-0940 | 560 | 80-180 | 2*3.7 | 10 | 4-8 | 4100*1818*1134 | 3700 |
| GZT-1148 | 600 | 150-300 | 2*5.5 | 10 | 4-8 | 4926*1676*1475 | 5060 |
| GZT1256 | 800 | 180-400 | 2*7.5 | 10 | 4-8 | 5704*1840*1492 | 6385 |
| GZT-1560 | 1000 | 400-600 | 2*13 | 10 | 4-8 | 6110*2440*1560 | 8900 |
