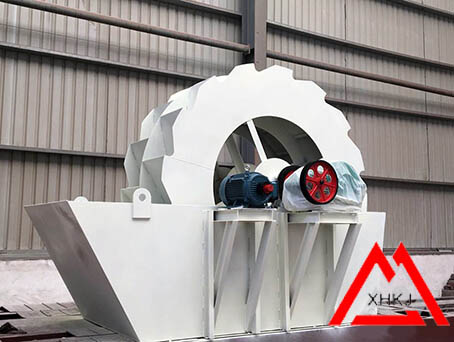

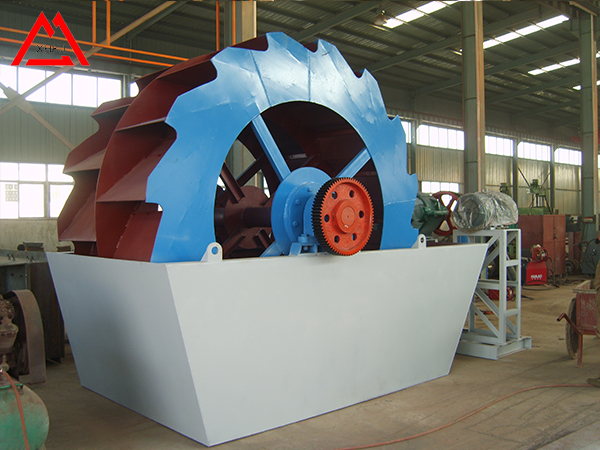

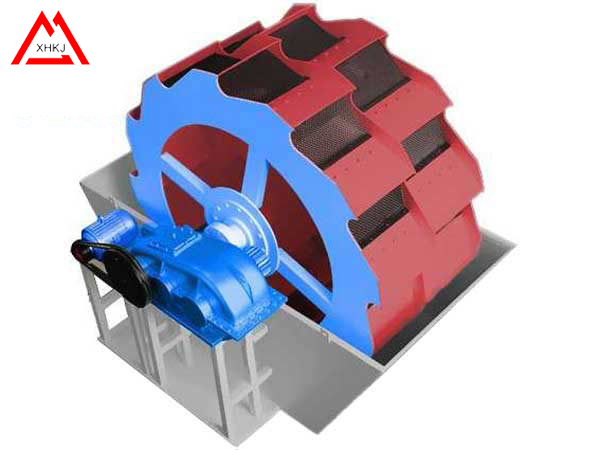

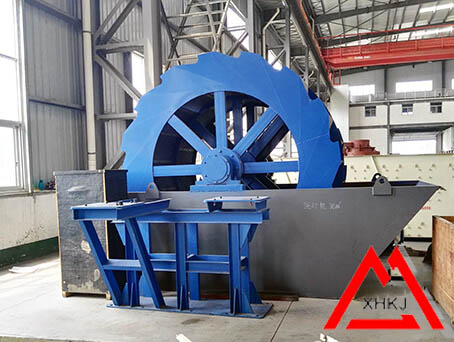

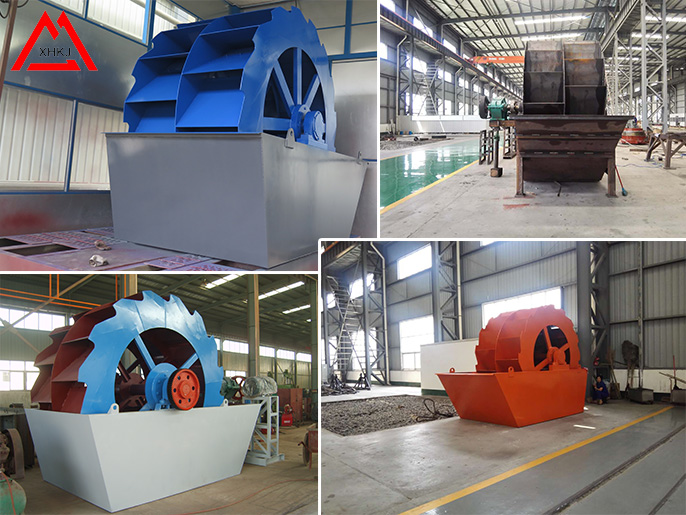

XS Series Sand Washer
Overview： The bucket wheel sand washer cleans and separates stone powder and dust. Its novel seal structure and reliable gearing ensure the cleaning and dehydration effects.You can call us on Tel: 0086-371-67660555
Materials： Iron ore, copper ore, slag, pebbles, quartz, granite, basalt, dolerite, etc.
0391-3373600ConsultingSand washing machine equipment drives the impeller in the water groove to move like a circle transmitted by electric motor and decelerator, and then mixes, overturns, cleans and discharges the sand or slag pellets in the water groove.
1. Simple structure.
2. The bearing device of impeller drive is separated from water and materials with water, to avoid the damage of the bearing.
3. New sealing structure and reliable transmission device.
4. Reasonable structure.
5. High capacity, low power consumption.
6. Easy structure, stable operation.
The bucket wheel sand washer cleans and separates stone powder and dust. Its novel seal structure and reliable gearing ensure the cleaning and dehydration effects. The sand washer is a kind of high efficiency sand washing equipment operated with sand maker. This series of sand washer features the following advantages: rational structure, convenient maintenance, great handling capacity, low power consumption and high washing cleanliness.
Technical Parameters
Technical Data
| Model | XS2600 | XS2600II | XS2800 | XS3200 | XS3600 |
| Diameter of The Wheel Bucket(mm) | 2600 | 2600 | 2800 | 3200 | 3600 |
| Rotation Rater (r/min) | 2.5 | 2.5 | 1.2 | 1 | 1 |
| Maximum Feeding Size(mm) | ≦10 | ≦10 | ≦10 | ≦10 | ≦10 |
| Processing Capacity(t/h) | 20~50 | 30~70 | 50~100 | 80~120 | 120~180 |
| Motor Power (kw) | 5.5 | 5.5 | 7.5 | 11 | 15 |
| Overall Dimensions(mm) | 3515*2070*2672 | 3515*2070* 2672 | 3900*3300* 2990 | 3965*4440* 3410 | 4355*4505* 3810 |
| Weight (kg) | 2500 | 2900 | 3980 | 7270 | 9430 |
